Axial

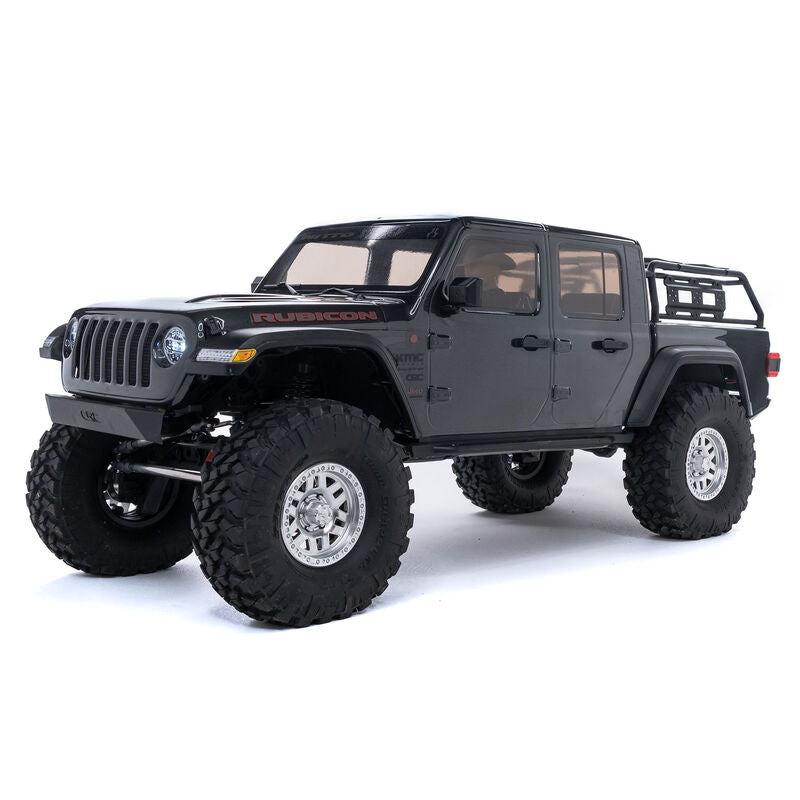

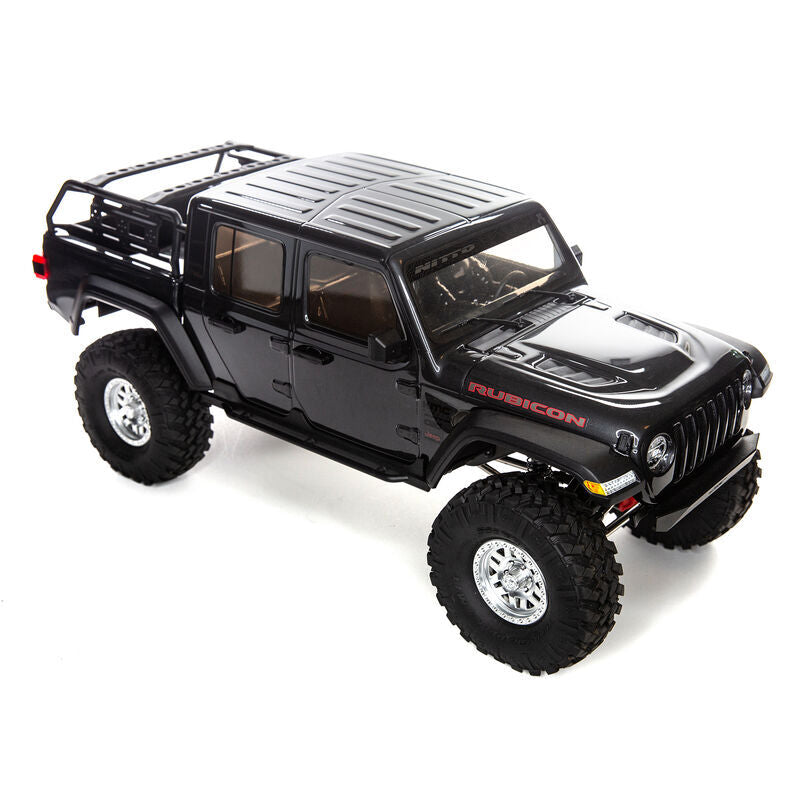

1/10 SCX10 III Jeep JT Gladiator 4X4 RTR Brushed Rock Crawler, Gray
$529.99
Please email us or give us a call at 724-779-2000 if you are interested in this product.
Features:
- Replica V8 engine cover, transmission housing and transfer case cover and protect the motor while improving scale appearance and adding forward-mounted weight.
- DIG function transmission option lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius.
- Two-speed transmission option (some assembly required) allows you to increase vehicle speed by approximately 40%.
- Drivers can choose between the DIG and 2-speed transmission options, or run both with a 4-channel transmitter and two servos (not included).
- AR45 Portal Axles feature an offset front housing for realistic looks.
- Axle housings also use portal gears for increased ground clearance and a universal that provides 45 degrees of steering.
- Differential locker features Hypoid gears, allowing for smaller size gears, improved gear reduction and reduced torque twist.
- Authentic Jeep® JT Gladiator body includes over 20 injection-molded parts including bed rack, door handles, mirrors, hood vents and more.
- Three-piece body provides a more realistic deep bed.
- New centered battery position improves chassis balance with front-mounted motor.
- Chassis side pods offer mounting locations for smaller LiPo batteries, if desired.
- Hard anodized oil-filled shocks feature shock cap with bleed screw for easier rebuilds.
- All drive train components in the transmission, portals and axle gears are metal for extreme durability — with pinion gear included, the vehicle has 23 metal gears in total.
- Improved materials increase durability and stiffness while holding tighter tolerances to eliminate most "slop".
- Metal stainless steel pivot balls at all suspension points increase durability and wear life for consistent handling.
- Improved suspension geometry further reduces torque twist while allowing chassis fine-tuning.
- Extended 13.9 inch wheelbase with longer frame rails and chassis supports a more realistic version of the Jeep® JT Gladiator body.
- Detailed interior with molded driver adds to the vehicle's realistic scale looks.
- New rear body mounts simplify body removal.
- Injection-molded inner fenders hide internal components usually visible from the side of the chassis.
- Spektrum™ DX3™ DSMR® radio is fully compatible with the Smart telemetry potential of the installed Firma™ Smart 40A ESC/receiver.
- Included Spektrum™ 15kg metal gear servo and all electronics are protected by a waterproof design for confident driving in any weather and trail conditions.
In The Box
- (1) Axial® SCX10™ III Jeep® JT Gladiator 4WD
- (1) Spektrum Firma™ Smart 40A ESC/Receiver (installed)
- (1) Spektrum 15kg Servo (installed)
- (1) Spektrum™ DX3™ DSMR® Radio
- (1) 1/10 SCX10III Jeep JT Gladiator Manual
Specifications:
| Approximate Assembly Time | No assembly required |
| Ball Bearings | Full set |
| Battery | Sold Separately |
| Body | 3-piece, highly detailed Lexan |
| Brakes | Integral with ESC |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Chassis | Adjustable steel C-channel |
| Completion Level | Ready-To-Run |
| Connector Type | IC3 |
| Differential | Locked |
| Drive Type | Forward/Brake/Reverse |
| Drivetrain | 4WD |
| Final Drive Ratio | 45.6:1 Low / 31.3:1 High |
| Front Track | 8.9 in (226mm) |
| Gear Pitch | 32-Pitch |
| Ground Clearance | 3 in (76.2mm) |
| LiPo Compatibility | 3S, 2S |
| Max Battery Dimensions | 5.45 x 1.83 x 1.38" (138.5 x 46.5 x 35mm) |
| Motor Type | Brushed |
| Pinion | 14T |
| Power Type | Electric |
| Product Height | 9.5" (241 mm) |
| Product Length | 22.25" (565 mm) |
| Product Weight | 7lbs (3175g) |
| Product Width | 9.25" (235 mm) |
| Radio | Included |
| Rear Track | 8.9 in (226mm) |
| Receiver | Included |
| Scale | 1/10 |
| Shock Type | Oil-filled |
| Speed Control | Included |
| Spur Gear | 40T |
| Suspension | Multi-link solid axle with stainless steel pivot balls |
| Technology | Smart |
| Vehicle Size | Standard |
| Vehicle Type | Rock Crawler |
| Water-Resistant | Yes |
| Wheelbase | 13.9" (353 mm) |
Needed to Complete
- Vehicle Battery (accepts standard and shorty packs)
- Compatible charger
- LiPo Safety Container
