Axial

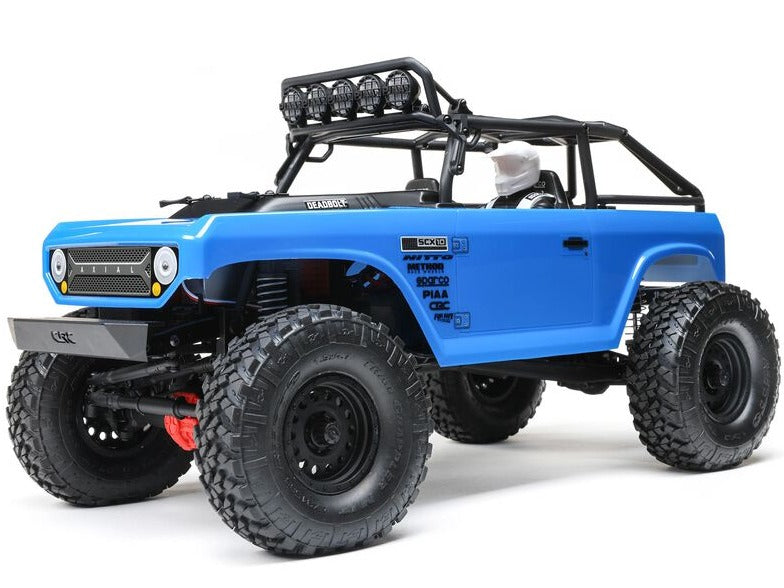

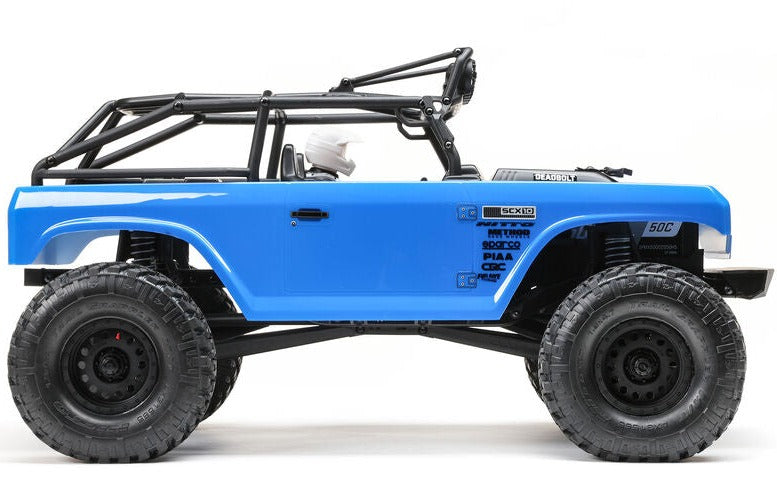

1/10 SCX10 II Deadbolt 4X4 Brushed RTR, Blue
AXI03025T1
$299.99
Please email us or give us a call at 724-779-2000 if you are interested in this product.
Features:

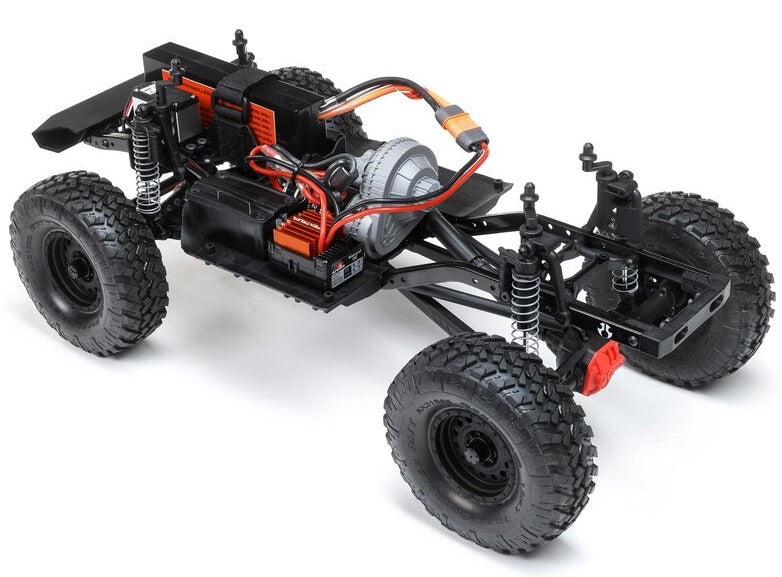

- Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
- Single-piece AR44 front and rear axles with molded truss for extreme durability
- High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
- LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
- Optimized gear ratio of 3.75 that reduces torque twist
- Metal gears
- Larger load rated bearings for durability
- 8° Kingpin axle that eliminates tire scrub
- Chassis mounted servo with adjustable servo mounting system
- Oil-filled, coilover shocks with threaded shock bodies
- Licensed CRC front bumper
- 3-piece WB8 HD Wildboar front and rear driveshafts with strengthened slider-floater tube to reduce flex and fatigue
- Easy-access, water-resistant receiver box
In The Box
- (1) 1/10 SCX10 II Deadbolt 4WD Brushed RTR
- (1) Spektrum™ SLT2 2.4GHz Radio System
- (1) Dynamite® 35-Turn 540 Brushed Motor
- (1) Spektrum 40A Brushed ESC with IC3® Connector
- (1) Spektrum SLR300 3-Channel SLT™ FHSS 2.4GHz Receiver
- (1) Spektrum S614 Waterproof Metal Gear Surface Servo, 23T
- (4) AA Transmitter Batteries
- (1) 1/10 SCX10 II Deadbolt 4WD Manual
Specifications:
| Approximate Assembly Time | Less than 1 Hour |
| Battery | Sold Separately |
| Brakes | Integral with ESC |
| Charger | Sold Separately |
| Completion Level | Ready-To-Run |
| Connector Type | IC3 |
| Differential | Locked |
| Drive Type | Forward/Brake/Reverse |
| Drivetrain | 4WD |
| Final Drive Ratio | 40.44:1 |
| Front Track | 7.5 in (190.5mm) |
| Gear Pitch | 32P |
| Gear Ratio | 3.75 |
| Ground Clearance | 2.7 in (68mm) |
| LiPo Compatibility | 3S, 2S |
| Motor Size | 540 |
| Motor Type | Brushed |
| Pinion | 14T |
| Power Type | Electric |
| Product Height | 9" (229 mm) |
| Product Length | 18.1" (460 mm) |
| Product Weight | 4.65 lb (2.1 kg) |
| Product Width | 8.8" (224 mm) |
| Radio | Included |
| Rear Track | 7.5 in (190.5mm) |
| Receiver | Included |
| Scale | 1/10 |
| Servos | Included |
| Shock Type | Oil Filled |
| Speed Control | Included |
| Spur Gear | 56T |
| Steering Type | 2WS |
| Vehicle Size | Standard |
| Vehicle Type | Rock Crawler |
| Water-Resistant | Yes |
| Wheel Hex Size | 12mm |
| Wheelbase | 12" (305 mm) |
Needed to Complete
- (1) 2-3S LiPo Battery with EC3™ or IC3™ connector
- (1) Compatible Battery Charger
