Team Losi Racing

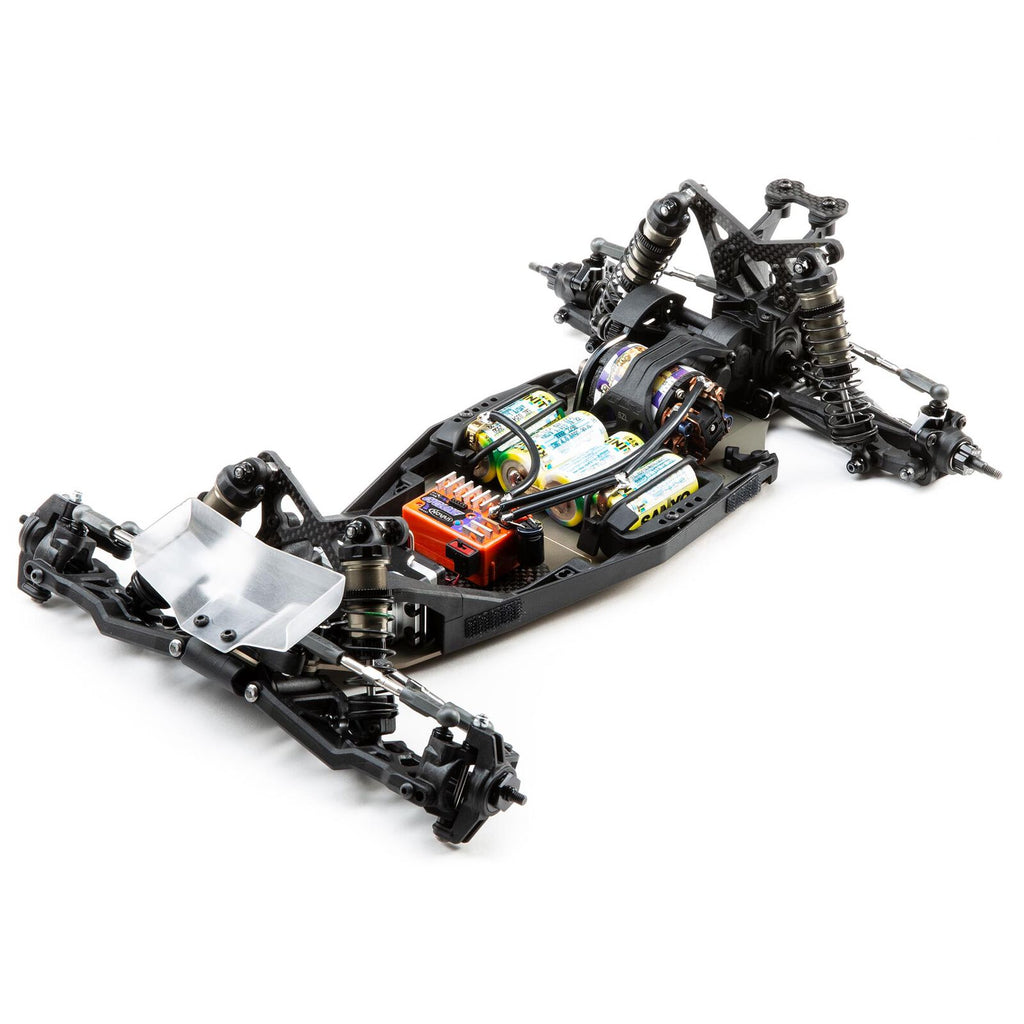

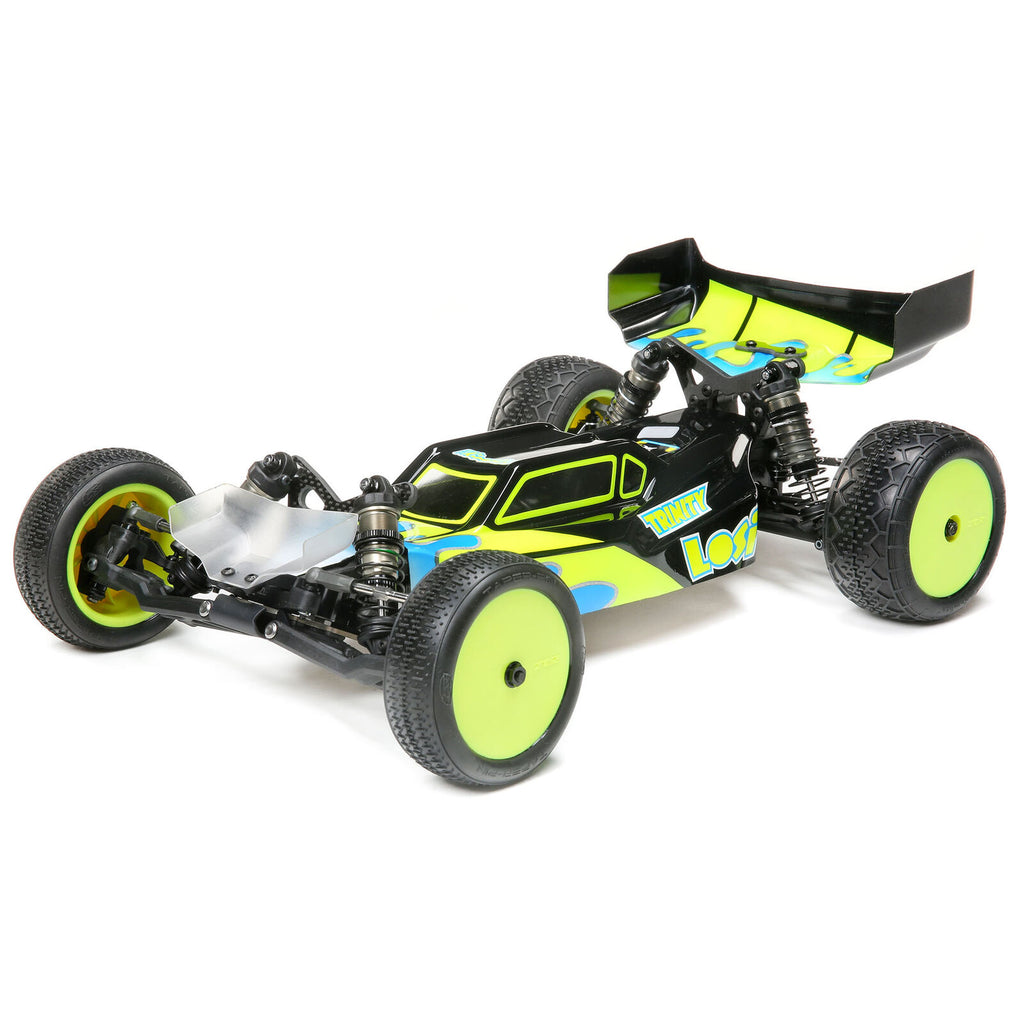

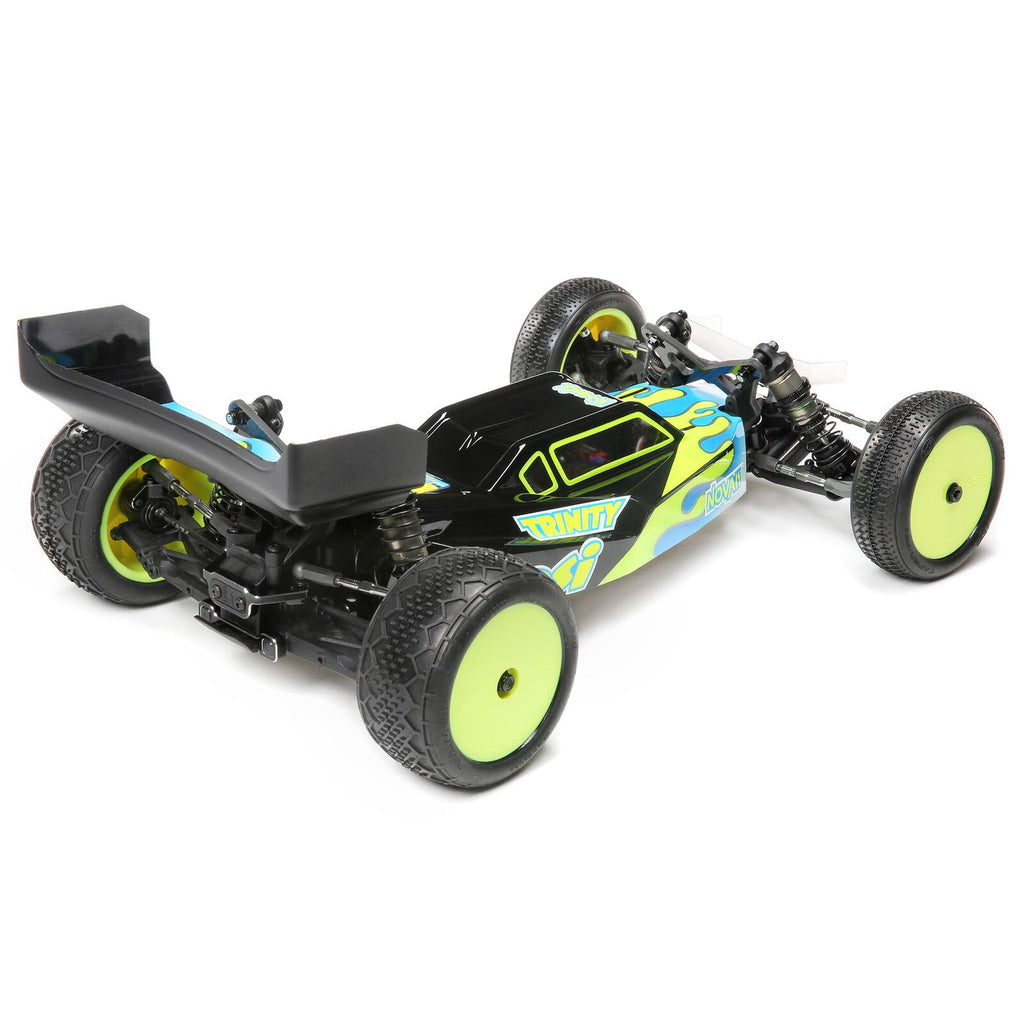

1/10 22 5.0 2WD DC ELITE Race Kit, Dirt/Clay
TLR03022
$419.99
Please email us or give us a call at 724-779-2000 if you are interested in this product.
Features
- Pro Level Ready
- Carbon Fiber Options Included
- Aluminum Options Included
- New Adjustable Rear Hub and Pivots
- Titanium Turnbuckles Included
- Revamped steering geometry
- Super Heavy Duty Slipper (SHDS)
- Laydown transmission configuration
- Stiffezel suspension components
- Fully Updated Differential
- Built-In Motor Fan Mount
- Lightweight body
- 2.0 Milled aluminum chassis
- Gen3 12mm big-bore shocks
- Front Roll Center Adjustment
- New Front Camber Block and Battery Hold Down
- Ballast tuning options (ballast sold separately)
In The Box
- (1) 22 5.0 DC ELITE Kit
- (1) 22™ 5.0 Cab Forward Body
- (1) Product Manual
Specifications:
| Approximate Assembly Time | 3-5 Hours |
| Ball Bearings | Full set, rubber sealed |
| Battery | Sold Separately |
| Body | Cab forward, 0.03" (0.7mm) thick |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Chassis | 7075-T6 Aluminum Milled Plate 0.08" (2mm) thick |
| Completion Level | Kit |
| Differential | Ball type |
| Drivetrain | 2WD |
| Front Track | 9.8 in (249mm) |
| Gear Pitch | 48-Pitch |
| Internal Gear Ratio | 2.43:1 |
| Max Battery Dimensions | 5.5 x 1.8 x 0.96" (139.7 x 46 x 24.5mm) |
| Power Type | Electric |
| Product Height | 5.8" (148mm) |
| Product Length | 15" (382mm) |
| Product Width | 9.8" (250mm) |
| Rear Track | 9.8 in (249mm) |
| Receiver | Sold Separately |
| Scale | 1/10 |
| Shock Type | Oil filled 12mm Big Bore |
| Speed Control | Sold Separately |
| Suspension | Stiffezel Front Suspension Arms, Soft Rear Suspension Arms |
| Vehicle Type | Buggy |
| Water-Resistant | Yes |
| Wheelbase | 11" (280mm) |
Needed to Complete
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) Steering Servo Mount (TLR331036 Recommended)
- (1) 2S “Shorty” LiPo Battery
- (1) LiPo Battery Charger
- (1) 48 Pitch Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) Wheels
- (4) Tires
- Polycarbonate Paint
- Tools (Please reference the manual for more details)
