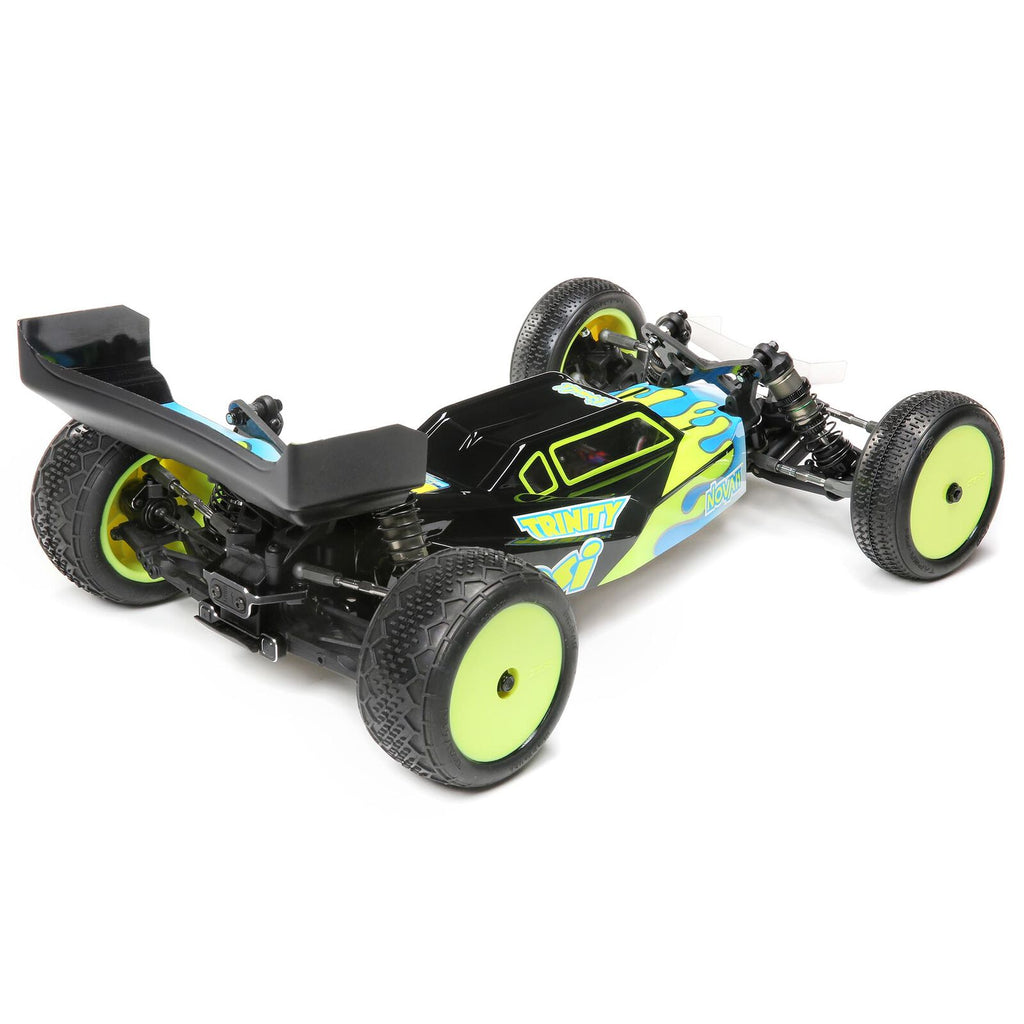

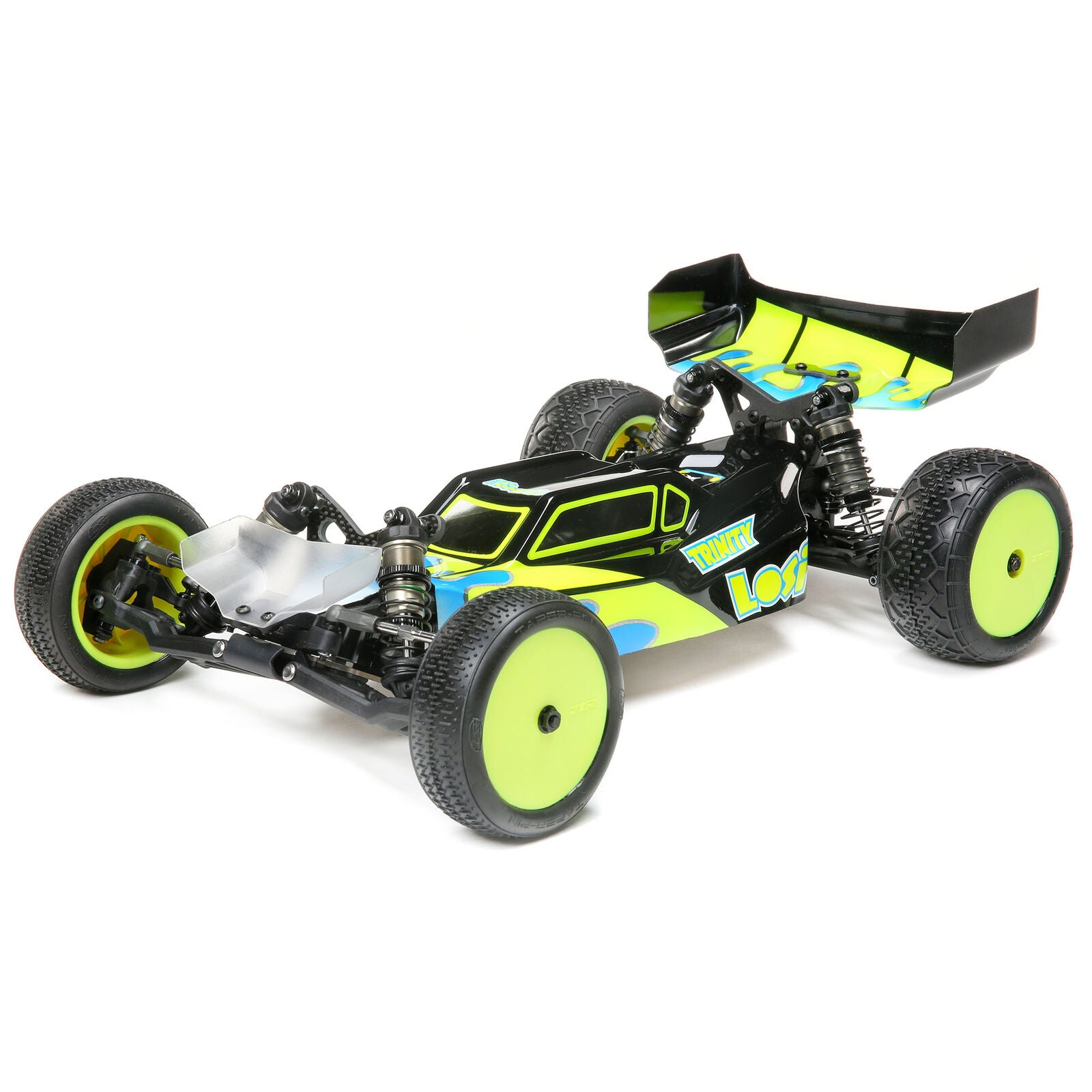

1/10 22 5.0 2WD DC ELITE Race Kit, Dirt/Clay
Regular price
$419.99
Features
- Pro Level Ready
- Carbon Fiber Options Included
- Aluminum Options Included
- New Adjustable Rear Hub and Pivots
- Titanium Turnbuckles Included
- Revamped steering geometry
- Super Heavy Duty Slipper (SHDS)
- Laydown transmission configuration
- Stiffezel suspension components
- Fully Updated Differential
- Built-In Motor Fan Mount
- Lightweight body

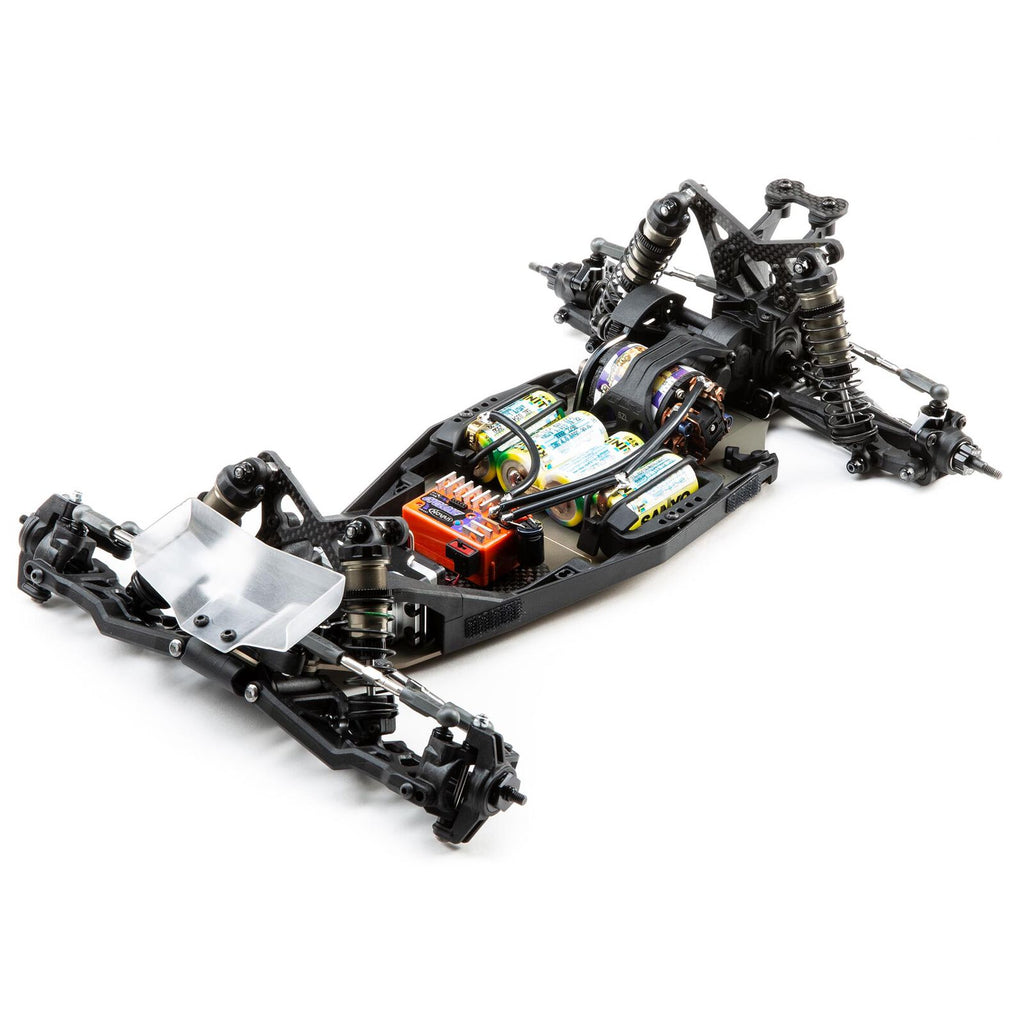

- 2.0 Milled aluminum chassis
- Gen3 12mm big-bore shocks
- Front Roll Center Adjustment
- New Front Camber Block and Battery Hold Down
- Ballast tuning options (ballast sold separately)
In The Box
- (1) 22 5.0 DC ELITE Kit
- (1) 22™ 5.0 Cab Forward Body
- (1) Product Manual
Specifications:
- Bushing Material: Metal
- Charger: Sold Separately
- Differential: Ball type
- Max Battery Dimensions: 5.5 x 1.8 x 0.96" (139.7 x 46 x 24.5mm)
- Receiver: Sold Separately
- Shock Type: Oil filled 12mm Big Bore
- Vehicle Type: Buggy
- Water-Resistant: Yes
- Rear Track: 9.8 in (249mm)
- Speed Control: Sold Separately
- Wheelbase: 11" (280mm)
- Approximate Assembly Time: 3-5 Hours
- Body: Cab forward, 0.03" (0.7mm) thick
- Scale: 1/10
- Battery: Sold Separately
- Internal Gear Ratio: 2.43:1
- Product Length: 15" (382mm)
- Suspension: Stiffezel Front Suspension Arms, Soft Rear Suspension Arms
- Ball Bearings: Full set, rubber sealed
- Chassis: 7075-T6 Aluminum Milled Plate 0.08" (2mm) thick
- Completion Level: Kit
- Drivetrain: 2WD
- Product Height: 5.8" (148mm)
- Power Type: Electric
- Gear Pitch: 48-Pitch
- Front Track: 9.8 in (249mm)
- Product Width: 9.8" (250mm)
Needed to Complete
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) Steering Servo Mount (TLR331036 Recommended)
- (1) 2S “Shorty” LiPo Battery
- (1) LiPo Battery Charger
- (1) 48 Pitch Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) Wheels
- (4) Tires
- Polycarbonate Paint
- Tools (Please reference the manual for more details)
