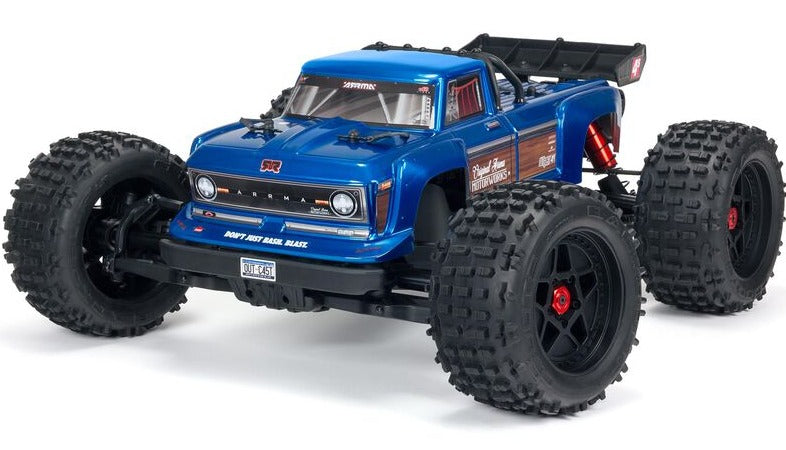

1/10 OUTCAST 4X4 4S V2 BLX Stunt Truck RTR, Blue
Regular price
$449.99
Part # ARA4410V2T2
New Features
- 17% Larger footprint – longer and wider than the previous OUTCAST™ 4X4 4S platform for added stability
- Tough new suspension arms that increase vehicle width
- Durable steel 1.35 module main diff gears and input gears in the front and rear gearboxes
- Strong CVD telescopic driveshafts front and rear
- Higher shock towers, longer shocks and wider suspension arms for longer, more plush suspension travel
- Aluminum big bore shocks included as standard
- CNC machined, red anodized 17mm wheel hubs
- Steel slipper hub strengthening ring
- Spektrum™ Firma™ 120A brushless ESC and 3668 2400Kv motor
- Spektrum™ 2.4GHz SLT3™ transmitter and SR315 receiver
- Spektrum™ S652 Steel Metal-Geared, waterproof digital servo with 232 oz-in of torque
- Sway bars fitted front and rear for improved cornering dynamics
- Wheelie bar with rubber tires
Proven 4X4 Platform Features
- Rubber shielded bearings
- Metal internal-geared diffs
- Steel spur gear
- Strong composite chassis with extended height dirt defenders
- Adjustable turnbuckles
- Steering system with stone clearance
- ARRMA® motor heatsink and cooling fan

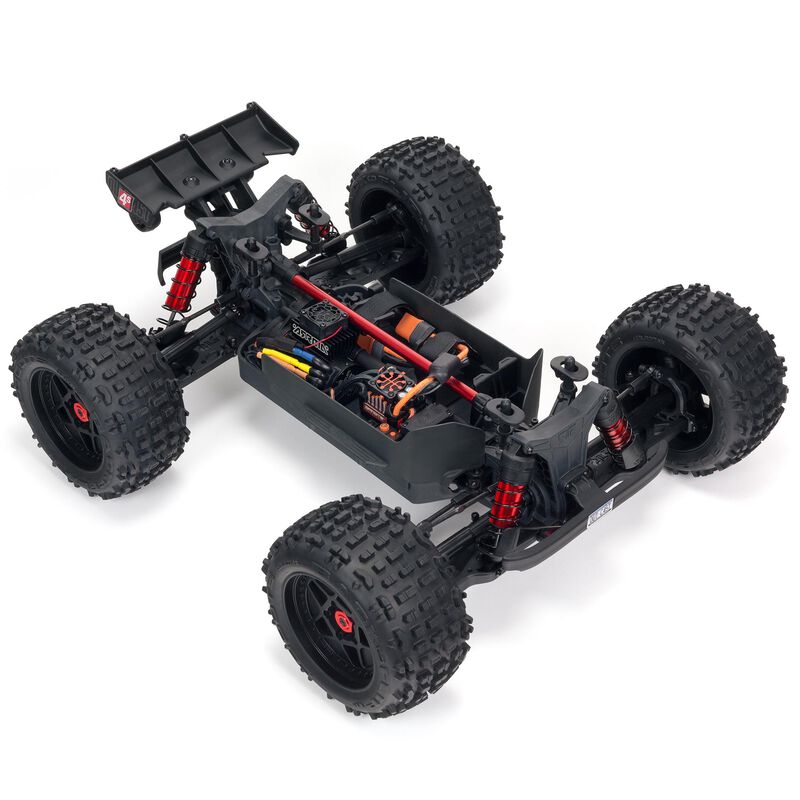

- Easy-access modular design — power, diff and electronics modules can be removed quickly and easily for maintenance
- Battery retention system including wire clips
In The Box
- (1) ARRMA® OUTCAST™ 4X4 4S BLX 1/10 Scale 4WD Electric Stunt Truck RTR
- (1) Spektrum™ Firma™ 120A Smart Waterproof ESC
- (1) Spektrum™ Firma™ 3668 2400Kv Brushless Motor
- (1) Spektrum™ 2.4GHz SLT3™ 3-Channel Transmitter
- (1) Spektrum™ SR315 Dual Protocol Receiver
- (1) Spektrum™ SPMS652 Metal-Geared Digital Servo
- (1) 23T Spline Servo Saver
- (1) Product Manual
Specifications:
| Approximate Assembly Time | No assembly required |
| Ball Bearings | Full Set, Rubber Shielded |
| Battery | Sold Separately |
| Body | Painted, decalled and trimmed |
| Brakes | Integral with ESC |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Chassis | Molded composite |
| Completion Level | Ready-To-Run |
| Connector Type | IC5, EC5 |
| Differential | 2 Gear Diffs |
| Drive Type | Forward/Brake/Reverse |
| Drivetrain | 4WD |
| Final Drive Ratio | 12.48 |
| Front Track | 17.72 in (450 mm) |
| Gear Pitch | 0.8 MOD |
| Internal Gear Ratio | 2.85 |
| LiPo Compatibility | 4S, 3S |
| Max Battery Dimensions | 6.14x2.01x1.89 in (156x51x48 mm) |
| Motor Size | 3668-2400Kv |
| Motor Type | Brushless |
| Pinion | 13T |
| Power System | 4S |
| Power Type | Electric |
| Product Height | 8.86" (225 mm) |
| Product Length | 20.28" (515 mm) |
| Product Weight | 9.17lbs (4.17kg) |
| Product Width | 17.72" (450 mm) |
| Radio | Included |
| Rear Track | 17.72" (450mm) |
| Receiver | Included |
| Scale | 1/10 |
| Sensored | No |
| Servos | Included |
| Shock Type | Aluminum body, oil-filled, coil-over springs |
| Speed Control | Included |
| Spur Gear | 57T |
| Steering Type | 2WS |
| Suspension | Independent |
| Technology | Smart, Dual Protocol RX (DSMR/SLT) |
| Tire Tread | dBoots |
| Top Speed | 55+ |
| Vehicle Size | Standard |
| Vehicle Type | Stunt Truck |
| Water-Resistant | Yes |
| Wheel Hex Size | 17mm |
| Wheelbase | 12.32" (313 mm) |
Needed to Complete
- (1) 3S or 4S LiPo Battery with EC5™ or IC5® connector
- (1) Compatible Battery Charger
- (4) AA batteries for Transmitter
- *Maximum battery dimensions 6.14x2.01x1.89 in (156x51x48mm). Minimum battery specs 5000mAh 35C.
