Axial

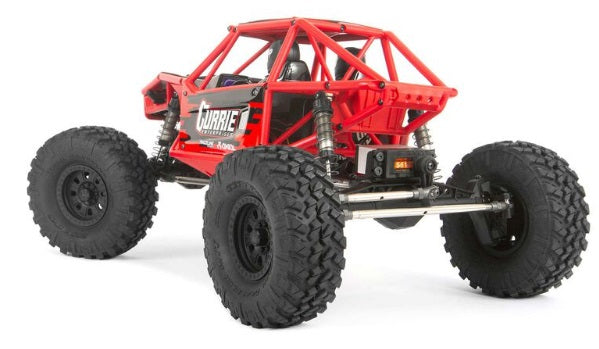

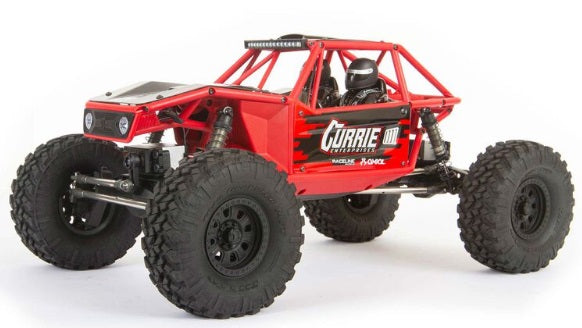

1/10 UTB10 Capra 1.9 Currie Unlimited Trail Buggy 4X4 RTR Brush Rock Crawler, Red
AXI03022BT1
$499.99
Please email us or give us a call at 724-779-2000 if you are interested in this product.
Features:
Features
- Includes front and rear steering out of the box for the ultimate in precise maneuverability
- Also includes an optional Dig setup — unlock the Dig transmission and upgrade to a 4-channel radio and micro servo to operate the Dig feature while also having rear steering
- Currie F9 Portal Axles offer over 45% of steering with extra ground clearance for the best crawling performance
- Tube chassis design offers the realistic scale looks of a rock crawler buggy and is optimized for suspension and tire clearance
- Included Spektrum™ DX3™ 2.4GHz DSMR® radio provides superior range, response, and interference resistance and is compatible with Smart technology
- Front and rear axles each come with a Spektrum™ S614 Metal-Gear servo installed for steering
- Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring
- All pivot points are on stainless steel balls for a durable, long-lasting suspension point
- Metal universal joints on both axles provide smooth action and 45 degrees of steering for an efficient, high-performance drivetrain
- Nitto Trail Grappler 1.9 tires are mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels
In The Box
- (1) Axial® Capra™ 1.9 4WS Unlimited Trail Buggy RTR
- (1) Spektrum™ DX3 2.4GHz Smart 3-Channel Radio (installed)
- (1) Spektrum™ Firma™ 40A Brushed Smart 2-in-1 ESC and Receiver (installed)
- (1) Axial® 35T Brushed Motor (installed)
- (2) Spektrum™ 15Kg Waterproof Servo 23T (installed)
- (1) Axial® LED Light Set (installed)
- (1) 1/10 Capra 1.9 4WS Manual
Specifications:
| Approximate Assembly Time | No assembly required |
| Ball Bearings | Full set |
| Battery | Sold Separately |
| Body | Screened polycarbonate |
| Brakes | Integral with ESC |
| Charger | Sold Separately |
| Chassis | Injection molded tubular |
| Completion Level | Ready-To-Run |
| Differential | Locked |
| Drive Type | Forward/Brake/Reverse |
| Drivetrain | 4WD |
| Final Drive Ratio | 37:1 |
| Front Track | 8.75" (222.25mm) |
| Gear Pitch | 32P |
| Ground Clearance | 3" (76.2mm) |
| Internal Gear Ratio | 5.14:1 |
| LiPo Compatibility | 3S, 2S |
| Motor Type | Brushed |
| Power Type | Electric |
| Product Height | 8.25" (210 mm) |
| Product Length | 17" (432 mm) |
| Product Weight | 4.5lbs (2.04kg) |
| Product Width | 10.25" (260 mm) |
| Radio | Included |
| Rear Track | 8.75" (222.25mm) |
| Receiver | Included |
| Scale | 1/10 |
| Servos | Included |
| Shock Type | Aluminum body coil-over spring |
| Speed Control | Included |
| Suspension | 4-link solid axle |
| Vehicle Size | Standard |
| Vehicle Type | Trail Buggy |
| Water-Resistant | Yes |
| Wheelbase | 12.5" (318 mm) |
Needed to Complete
- (1) 2-3S Shorty LiPo Battery
- (1) Compatible LiPo Battery Charger
