Team Losi Racing

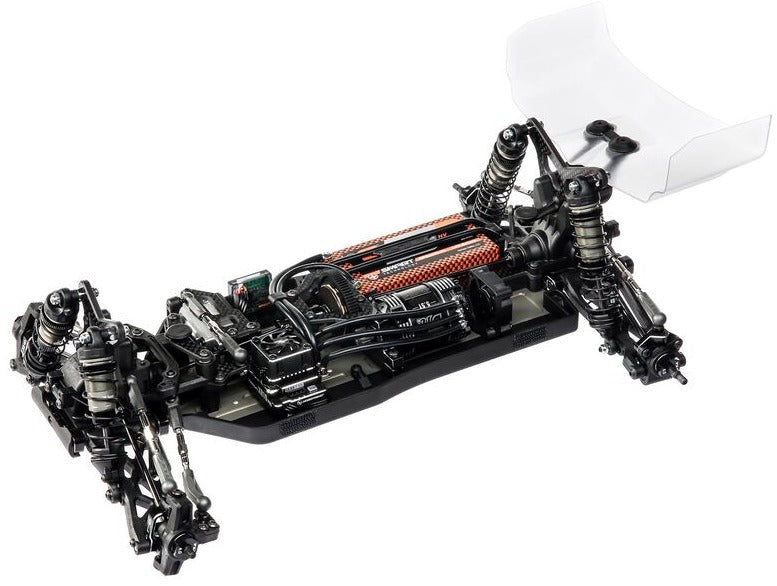

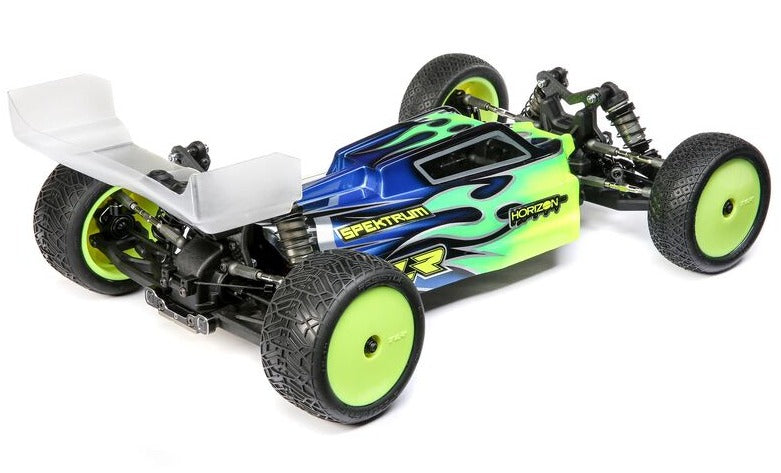

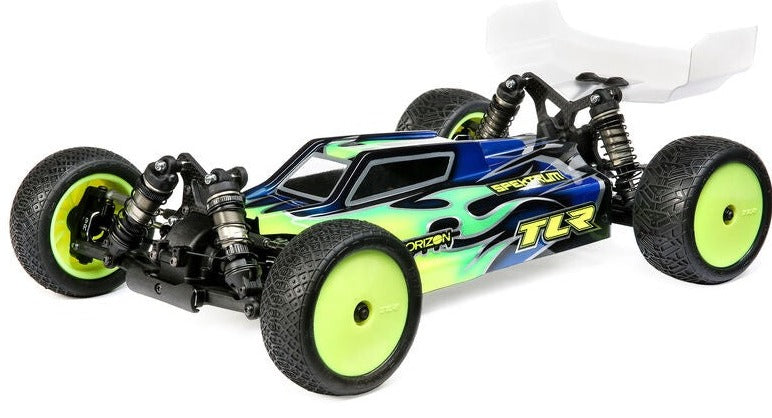

1/10 22X-4 4WD Buggy Race Kit
Regular price
$449.99
Part # TLR03020
Features
- Shaft Drive Platform
- Fully Adjustable Suspension
- Premium Parts Included
- 2.5 Milled Aluminum Chassis
- G3 12mm Big Bore Shocks
- All New Gear Diffs
- Adjustable Inner Pivots
- Optimized Suspension Composites
- Elastomer Battery Mounting
- Floating Servo Mount
- Adjustable Motor and Battery Position
- Fresh 22X-4 Body Design
- Carbon Fiber Optimized
- All Metric Hardware
- TLR 6.5" Rear Wing
- Easy Access Diffs
- Built-In Motor Fan Mount
In The Box
- (1) TLR® 1/10 22X-4 Race Buggy Kit
- (1) Product Manual
Specifications:
-
Type: Buggy Race Kit
-
Scale: 1/10
-
Length: 14" (356mm)
-
Width: 9.8" (250mm)
-
Height: 5.8" (148mm)
-
Wheelbase: 11.2" (283.5mm)
-
Chassis: 0.098" (2.5mm) thick 7075-T6 milled aluminum plate
-
Suspension: Lower A-arm, upper adjustable link, Stiffezel front and rear arms
-
Drivetrain: 4WD Shaft Drive
-
Gear Pitch: 48-pitch
-
Wheel Size: 2.2" (56mm)
-
Kit/RTR: Kit
-
Shock Type: Oil-filled 12mm Big Bore
-
Body: 22X-4, 0.7mm thick lightweight
-
Ball Bearings: Full set, rubber sealed
- Is Assembly Required: Yes
Needed to Complete
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) Steering Servo Mount (TLR331036 Recommended)
- (1) 2S LiPo or LiHV Battery
- (1) Compatible Battery Charger
- (1) 48P Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (4) Tires
- Polycarbonate Paint
- Tools (Please reference the manual for more details)
